Power cables of different voltage classes
ZMS cable manufacturer produces cables in different voltage classes。 Depending on the voltage level，Cables can be divided into low voltage cables、Medium voltage cable、High-voltage and extra-high-voltage cables。 Low-voltage cables are used to transmit power on fixed output distribution lines，frequency is 50 Hz ，The nominal voltage is 3 kV and below。 Medium voltage cable generally refers to the voltage level above 3kV、35Transmission lines below kV。 High voltage cables are rated for 35 kV to 220 kV。 Suitable for substations or overhead transmission cables。
ZMS Voltage Products

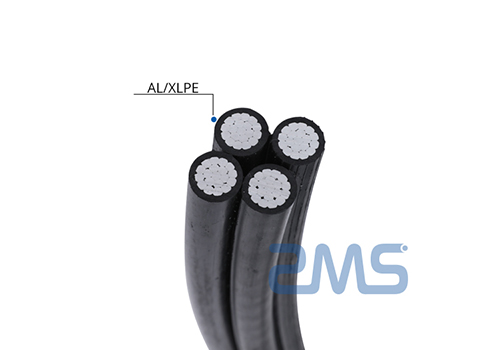

Low Voltage Overhead Cable (ABC Cable) — 0.6/1 kV or lower cable
Bundled overhead cables are based on aluminum cores、Aluminum alloy core or copper core as conductor，PVC/XLPE/HERE insulated overhead wires。 Suitable for overhead power lines with voltage levels of 0.6/1 kV and below。 Its structure is simple、Easy installation and maintenance、low cost、Large power transmission capacity，Widely used in transmission and distribution lines of different voltage levels。 It also has a certain anti-corrosion ability，Also used in coastal areas or places with special geographical features。
conductor：aluminum、Aluminum alloy、copper
insulation：XLPE、PVC
core：three cores、Four cores
standard ：IEC 61089、BS 7870、FROM 48201、ASTM B399、BS EN50183、NFC33-209
Low Voltage Power Cables — 0.6/1 kV or lower cable
XLPE insulated armored power cable has high electrical strength、Mechanical strength、Aging resistance、Environmental Stress and Chemical Resistance。 Simple structure，high performance，Can be stored for a long time。 Suitable for power transmission、architecture、factory、Communication and other fields。also，Can completely replace oil-impregnated paper insulated power cables，Partial replacement for PVC insulated power cables。
conductor：copper、aluminum
insulation：PVC、XLPE
core：one、two、three、Four、Five cores, etc.
standard ：IEC 60502、IEC 60228、(IEC 60332-3)

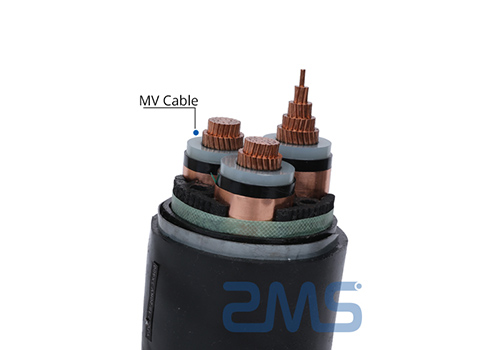

Medium Voltage Power Cable 3.5 kV to 35 kV
ZMS medium voltage cables are suitable for distribution networks，Can also be used to connect power generation installations and equipment as well as industrial。They can be laid directly in the ground、indoor and outdoor，and in cable ducts。
architecture
Rated voltage：3.6/6kV，6/10kV（11kV），12/20kV（24kV），19/33kV，26/35kV（35kV）
conductor：copper、aluminum
insulation：Semiconductive XLPE
single conductor：AWA (Aluminum Wire Shield)
Multi-core：SWA (Shielded Steel Wire)
jacket：PVC
standard：from Vde 0276-620, hd 620 s1, your/bs one 60228, bs en/iec 60332-1-2

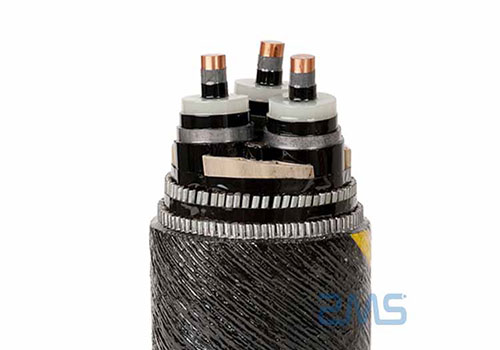

High voltage cable 35 kV to 220 kV
High voltage cables for high voltage power transmission。 Suitable for power station、outdoor、Most large power transmissions such as underground and underwater cable ducts。
Rated voltage：36/64 kV、48/66 kV、64/110 kV、110/220 kV、127/220 kV
conductor：copper、aluminum
insulation：XLPE、PVC
Armoured：SWA (steel wire armor)
jacket：HDPE、PVC
standard：IEC 60840、HRN HD 632

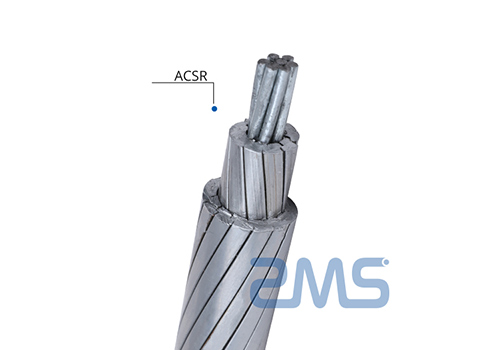

High Voltage Overhead Cable 35 kV to 220 kV
When bare aluminum conductors are used as overhead cables，Especially when power transmission is carried out in the form of overhead aluminium stranded wires，It is the most cost-effective powerful transmission product。
construction。
conductor：Bare aluminum conductor，Reinforced steel conductor
insulation：Air
standard：IEC61089, ASTM B 232, DIN48204, BS 215 Part 2
ZMS cable product introduction
ZMS Wire Company is a well-known manufacturer of cables of various voltage grades。No matter what voltage rating or type of cable you need，We can all provide customized cable solutions according to your application needs。However，There is still some ambiguity in the voltage rating range of voltage cables today。It depends on the country as well as the body designated by the standard。
ZMS cable manufacturer produces cables in different voltage classes。The power levels we produce include：
The general voltage level of low-voltage cables is：300/300V、300/500V、450/750V、0.6/1 kV、1.8/3 kV, etc.。
The general voltage class of medium voltage cables is：3.6/6 kV、6/10 kV、8.7/15 kV、12/20 kV、21/35 kV、26/35 kV, etc.。
The general voltage level of high-voltage cables is：36/64 kV、48/66 kV、66/120 kV、127/220 kV, etc.。
Professional custom cable service
product service
ZMS has a wide range of cable and conductor products to choose from。We provide thoughtful service and professional project solutions for those in need。
Quality Certification Service
ZMS cable products according to GB、IEC、BS、NFC、ASTHMA、Manufactured to international standards such as DIN。Our technical team can customize cable products that meet your requirements according to your needs。
Professional customer service
ZMS provides free professional consulting services，Provide you with one-stop project solution services and fast product delivery solutions。
Delivery and Shipping Services
ZMS offers high quality cables and cable accessories while，We also provide good delivery solutions。While ensuring the safe delivery of products，We offer the best packaging and shipping solutions，Thereby greatly reducing the customer's transportation cost。
ZMS packaging
The packaging of ZMS cables is mainly made of wooden spools、Corrugated boxes and spools。Cable ends are sealed with self-adhesive BOPP tape and non-hygroscopic sealing caps，to protect the cable ends from moisture。We can according to customer's request，Print the required marks on the outside of the roller with a waterproof material。
